Settings: Main


On this tab you choose the operating mode and the general limits. After changing something, press Save («Сохранить») at the bottom of the page. The mode changes without rebooting the ESP32, but only when the heating is off: while the heating is on Samovar does not accept the form and shows the message "Settings not saved: HTTP 409 — stop the process first: this action is unavailable while it is running" «Настройки не сохранены: HTTP 409 — сначала остановите процесс: пока он идёт, это действие недоступно».

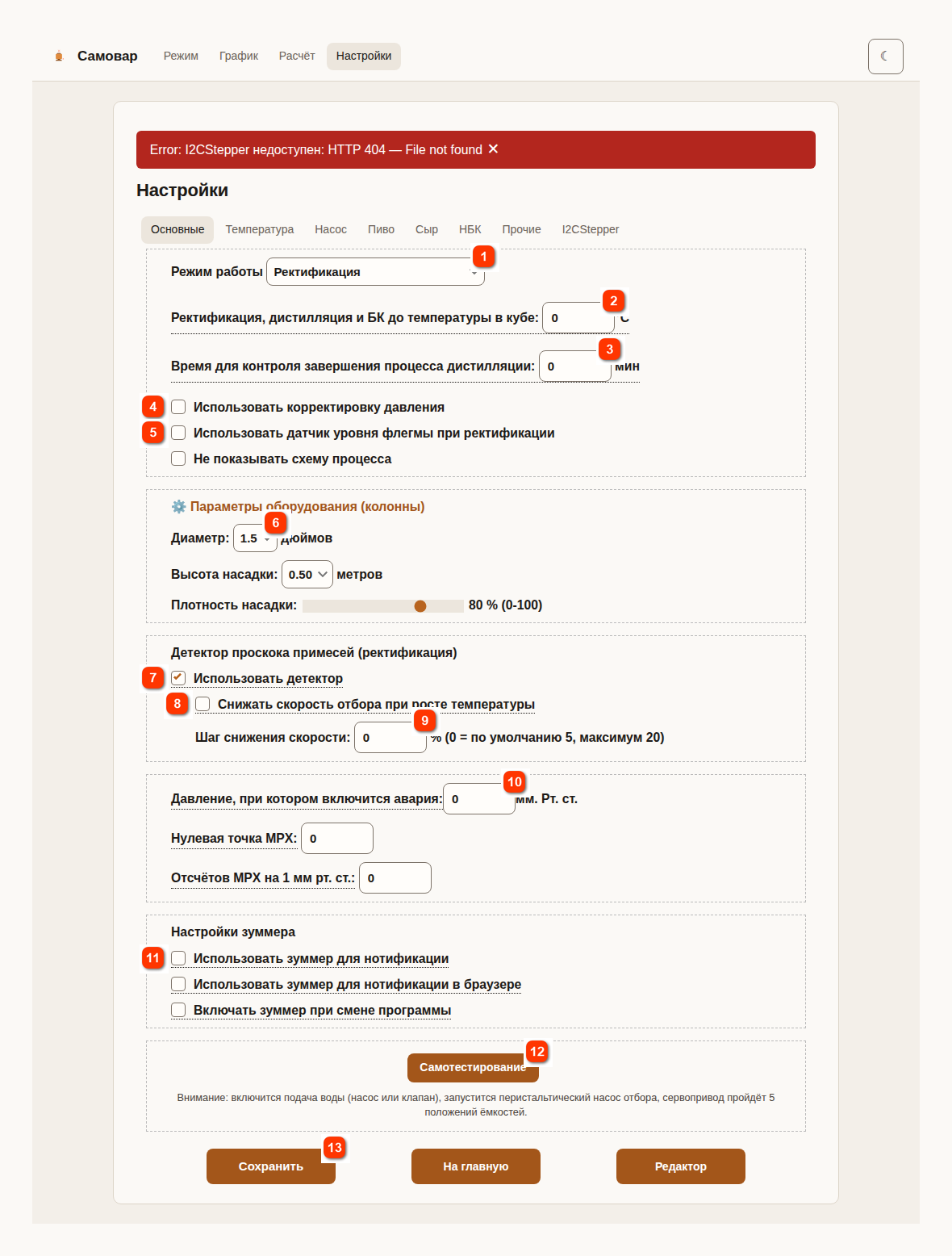

Settings → Main («Настройки → Основные»)
1

Operating mode («Режим работы»)

Mode selection: Rectification («Ректификация»), Distillation («Дистилляция»), Beer («Пиво»), Wash column («Бражная колонна»), Continuous wash column («Непрерывная бражная колонна»), Cheesemaking («Сыроварение»). It can be changed only while the heating is off.

2

Process end temperature («Температура окончания процесса»)

The boiler temperature at which distillation, BK and the take-off after the rectification program finish.

3

Time for distillation completion check («Время для контроля завершения дистилляции»)

Minutes without a rise in the boiler temperature after which distillation or BK finishes. 0 - do not monitor.

4

Pressure correction («Корректировка давления»)

Correction of the sensor readings for atmospheric pressure.

5

Reflux level sensor («Датчик уровня флегмы»)

Works only in builds with a reflux level sensor.

6

Column parameters («Параметры колонны»)

Diameter, packing height and packing density - for the program calculator.

7

Use detector («Использовать детектор»)

The main switch of the impurity breakthrough detector.

8

Reduce take-off rate («Снижать скорость отбора»)

Smooth rate reduction when the vapor temperature rises; works only with the detector.

9

Rate reduction step («Шаг снижения скорости»)

The percentage of a single rate change (0 = 5%, maximum 20%).

10

Alarm pressure («Давление аварии»)

The excess pressure in the boiler (mmHg) at which Samovar goes into an emergency. 0 - off.

11

Buzzer («Зуммер»)

Sound on the device, sound in the browser, signal on a program line change.

12

Self-test («Самотестирование»)

A check of the water, the take-off pump and the servo. Does not start during a process.

13

Save («Сохранить»)

Writes the settings of all tabs. Next to it are "Home" («На главную») (leave without saving) and "Editor" («Редактор») (file manager).


Mode and process completion

Operating mode («Режим работы») — Rectification («Ректификация»), Distillation («Дистилляция»), Beer («Пиво»), Wash column («Бражная колонна»), Continuous wash column («Непрерывная бражная колонна») or Cheesemaking («Сыроварение»). There are no Sous-vide («Су-вид») and Lua items in the list. Continuous wash column appears in the list only if the firmware is built with a power regulator.

Rectification, distillation and BK up to boiler temperature («Ректификация, дистилляция и БК до температуры в кубе») — the normal completion temperature. In distillation and BK the process ends at it; in rectification, when the boiler reaches this temperature, the program ends even if not all of its lines are done (the message "Maximum boiler temperature limit. Program finished." «Лимит максимальной температуры куба. Программа завершена.»). If pressure correction is off, at altitude the boiling temperature is lower and a limit that is too high may never be reached.

Time for distillation completion check («Время для контроля завершения процесса дистилляции») — for how many minutes the boiler temperature (above 90°C) must stay almost unchanged (rise of less than 0.1°C) before completion. Applies in distillation and BK. Zero turns this criterion off, the maximum is 255.

Use pressure correction («Использовать корректировку давления») — a correction of the vapor, column section and boiler sensor readings for atmospheric pressure (0.037°C per mmHg of deviation from 760) while the heating is on. The water and TCA sensors are not corrected.

Use reflux level sensor during rectification («Использовать датчик уровня флегмы при ректификации») — includes it in the rectification algorithm if the sensor is provided by the build. In the standard build (Samovar_ini.h) the reflux level sensor is always on (IGNORE_HEAD_LEVEL_SENSOR_SETTING): the switch label is hidden, and Samovar turns this parameter on by itself at startup.

Do not show process diagram («Не показывать схему процесса») — hides the apparatus diagram on the mode pages of the web interface.

Equipment (column) parameters

Diameter («Диаметр»), Packing height («Высота насадки») and Packing density («Плотность насадки») describe your column. They are used by the program calculation calculator (the "Calculation" («Расчёт») tab), and they are written to the process log.

Impurity breakthrough detector (rectification)

Use detector («Использовать детектор») — the main switch of the impurity detector. The detector works only in rectification and watches the vapor temperature trend. On the Heads («Головы») and Tails («Хвосты») lines it only observes; on the Hearts («Тело») and Pre-flooding («Предзахлёб») lines, on a critical rise it pauses the take-off and resumes it by itself when the temperature returns. The detector state is shown in the "Impurity detector" («Детектор примесей») block on the main page.

Reduce take-off rate when temperature rises («Снижать скорость отбора при росте температуры») — works only together with the detector. On the Hearts («Тело») and Pre-flooding («Предзахлёб») lines, on a temperature rise warning the take-off rate is reduced in steps until the trend levels off. The pause on a critical rise happens regardless of this switch.

Rate reduction step («Шаг снижения скорости») — the percentage of a single rate change. 0 - the default 5%, the maximum is 20%.

Pressure at which the alarm triggers («Давление, при котором включится авария») — the limit of the excess pressure in the boiler, mmHg, for a connected pressure sensor. When this pressure is reached, Samovar goes into emergency mode and switches the heating off. 0 - the control is off. A wrong value can cause a false alarm or no expected stop. If the MPX5010DP sensor is enabled in the firmware, two calibration fields for it appear below: "MPX zero point" («Нулевая точка MPX») and "MPX counts per 1 mmHg" («Отсчётов MPX на 1 мм рт. ст.»).

Buzzer and self-test

The buzzer parameters separately enable the sound on the device, the sound in the browser and the signal on a program line change. When the first parameter is off, the buzzer is disabled completely.

The Self-test («Самотестирование») button checks the actuators: the water supply is switched on (the pump starts or the valve opens), the peristaltic take-off pump starts, and the servo steps through the 5 container positions in turn. You must confirm the action before the start. The test lasts about 30 seconds and ends with the message "Self-test finished." («Самотестирование закончено.»). The self-test does not start while a process is running: Samovar shows the message "Self-test rejected: a process or mode change is active" «Самотестирование отклонено: активен процесс или смена режима». Before pressing the button, disconnect any dangerous load and direct the hoses into a safe container.

At the bottom of the page there are three buttons: Save writes all settings tabs and returns to the main page; Home («На главную») leaves without saving; Editor («Редактор») opens the firmware file manager. If the form has unsaved changes, Samovar asks for confirmation before you leave. If a field has an error, saving is not done: the tab with that field opens and the message "Settings not saved. Check the fields: …" («Настройки не сохранены. Проверьте поля: …») is shown.
