The "Download settings file" («Скачать файл настроек») and "Upload settings file" («Загрузить файл настроек») buttons are in Settings («Настройки») → Other («Прочие»). The file contains all fields of all settings tabs. The table below describes only the main fields; the rest (detector, column, pressure, second pump, Beer, NBK, mains voltage, etc.) are saved and loaded the same way. After the file is loaded, the values are only filled into the form: to apply them, press "Save" («Сохранить»).
Samovar can save all settings to a text file and later restore them. This is convenient if you use several sets of temperature sensors, so you do not have to enter their addresses every time. After you press "Download settings file", the browser creates the file samovarbackup.txt, which is saved to your browser's downloads folder.
The saved file can be renamed (raw material, mode and so on) and loaded as needed.
To restore, press "Upload settings file" and select the file. Samovar checks that it is a settings file in JSON format, fills the values into the form fields and shows the message "Settings loaded into the form, press Save to apply" («Настройки загружены в форму, нажмите «Сохранить», чтобы применить»). If the file contains values outside the allowed range, the message lists the faulty fields; fix them before saving. The loaded values take effect only after you press "Save".
This file also contains information that you can copy and paste into Samovar without loading all the previous settings. For example, the Blynk token or the video camera URL.

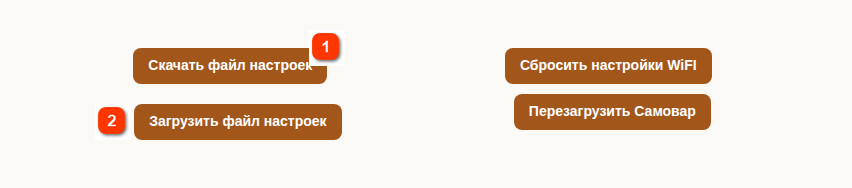

Settings → Other: saving and loading the settings file («Настройки → Прочие: сохранение и загрузка файла настроек»)
 Download settings file («Скачать файл настроек»)
Creates the samovarbackup.txt file with all fields of the settings form and saves it to the browser's downloads folder.
|
 Upload settings file («Загрузить файл настроек»)
Opens a file picker. The values from the file are filled into the form; to apply them, press "Save" («Сохранить»). The StepperStepMl field is not loaded from the file.
|
Warning.
In some cases, when a new sensor is added, the sensors may change the mounting place assigned to them earlier. This is related to the sensor identifier and to the logic Samovar uses to arrange the sensors.
The samovarbackup.txt file looks like this:
{"mode":"0","DistTemp":"98.000","usepressure":true,"useautospeed":true,"autospeed":"2","UseBuzzer":true,"UseBBuzzer":true,
"ChangeProgramBuzzer":false,"SteamAddr":"0","DeltaSteamTemp":"-2.000","SetSteamTemp":"0.300","SteamDelay":"20","PipeAddr":"2",
"DeltaPipeTemp":"0.000","SetPipeTemp":"2.000","PipeDelay":"20","WaterAddr":"3","DeltaWaterTemp":"0.000","SetWaterTemp":"0.000","WaterDelay":"20",
"TankAddr":"4","DeltaTankTemp":"0.000","SetTankTemp":"0.000","TankDelay":"20","ACPAddr":"1","DeltaACPTemp":"0.000","SetACPTemp":"0.000",
"ACPDelay":"20","StepperStepMl":"8954","Kp":"150.000","Ki":"1.400","Kd":"1.400","StbVoltage":"100.00","blynkauth":"9u0XzN*******R1e7xHYp",
"videourl":"","TimeZone":"3","CheckPower":false,"HeaterR":"35.000","SteamColor":"#2c03fc","PipeColor":"#f90126","WaterColor":"#08c7f7","TankColor":"#338a05","ACPColor":"#000000","rele1":"1","rele2":"0","rele3":"0","rele4":"0"}
The parameters are separated by commas, and each parameter and its value are enclosed in quotes and joined by a colon.
For example: ,"DistTemp":"98.000",
When loading a saved settings file into Samovar, all values except StepperStepMl replace the current values. I2CStepper calibration is stored in Nano memory; the Samovar settings file neither contains nor changes it.
Warning.
The "Number of motor steps needed to take off 1 ml." («Количество шагов двигателя необходимых для отбора 1 мл.») value (StepperStepMl) is present in the samovarbackup.txt file, but it is not loaded into Samovar when settings are restored. The value that exists at the time of restoring settings is not overwritten. You can restore it manually.
The table lists the parameter names with explanations. The values are taken, as an example, from the samovarbackup.txt file shown above.
|
"mode"
|
0
|
Operating mode
|
|
DistTemp
|
98.000
|
Rectification, distillation and BK up to boiler temperature («Ректификация, дистилляция и БК до температуры в кубе»)
|
|
usepressure
|
true
|
Use pressure correction («Использовать корректировку давления»)
|
|
useautospeed
|
true
|
Reduce take-off rate as temperature rises («Снижать скорость отбора при росте температуры»)
|
|
autospeed
|
2
|
Rate reduction step, % (0 = 5, maximum 20) («Шаг снижения скорости, % (0 = 5, максимум 20)»)
|
|
UseBuzzer
|
true
|
Use the buzzer for notification («Использовать зуммер для нотификации»)
|
|
UseBBuzzer
|
true
|
Use the buzzer for notification in the browser («Использовать зуммер для нотификации в браузере»)
|
|
ChangeProgramBuzzer
|
false
|
Sound the buzzer when the program changes («Включать зуммер при смене программы»)
|
|
SteamAddr
|
0
|
Steam sensor address before the dephlegmator («Адрес датчика пара перед дефлегматором»)
|
|
DeltaSteamTemp
|
-2.000
|
Steam sensor correction before the dephlegmator («Корректировка датчика пара перед дефлегматором»)
|
|
SetSteamTemp
|
0.300
|
Overshoot beyond the steam sensor setpoint before the dephlegmator («Вылет за уставку датчика пара перед дефлегматором»)
|
|
SteamDelay
|
20
|
Take-off delay when steam T goes beyond the setpoint (sec) («Задержка отбора при выходе Т пара за уставку (сек)»)
|
|
PipeAddr
|
2
|
Column section sensor address («Адрес датчика в царге»)
|
|
DeltaPipeTemp
|
0.000
|
Column sensor correction («Корректировка датчика в царге»)
|
|
SetPipeTemp
|
2.000
|
Overshoot beyond the column sensor setpoint («Вылет за уставку датчика в царге»)
|
|
PipeDelay
|
20
|
Take-off delay when column T goes beyond the setpoint (sec) («Задержка отбора при выходе Т в царге за уставку (сек)»)
|
|
WaterAddr
|
3
|
Water sensor address («Адрес датчика воды»)
|
|
DeltaWaterTemp
|
0.000
|
Water sensor correction («Корректировка датчика воды»)
|
|
SetWaterTemp
|
0.000
|
Water sensor setpoint («Уставка датчика воды»)
|
|
WaterDelay
|
20
|
Trigger delay when water T goes beyond the setpoint (sec) («Задержка срабатывания при выходе Т воды за уставку (сек)»)
|
|
TankAddr
|
4
|
Boiler sensor address («Адрес датчика в кубе»)
|
|
DeltaTankTemp
|
0.000
|
Boiler sensor correction («Корректировка датчика в кубе»)
|
|
SetTankTemp
|
0.000
|
Overshoot beyond the boiler sensor setpoint («Вылет за уставку датчика в кубе»)
|
|
TankDelay
|
20
|
Trigger delay when boiler T goes beyond the setpoint (sec) («Задержка срабатывания при выходе Т в кубе за уставку (сек)»)
|
|
ACPAddr
|
1
|
TCA sensor address («Адрес датчика ТСА»)
|
|
DeltaACPTemp
|
0.000
|
TCA sensor correction («Корректировка датчика в ТСА»)
|
|
SetACPTemp
|
0.000
|
TCA sensor setpoint («Уставка датчика в ТСА»)
|
|
ACPDelay
|
20
|
Trigger delay when TCA T goes beyond the setpoint (sec) («Задержка срабатывания при выходе Т в ТСА за уставку (сек)»)
|
|
StepperStepMl
|
8954
|
Number of motor steps needed to take off 1 ml. («Кол-во шагов двигателя необходимых для отбора 1 мл.»)
|
|
Kp
|
150.000
|
Coefficient for the heating PID regulator («Коэффициент для PID регулятора нагрева»)
|
|
Ki
|
1.400
|
Coefficient for the heating PID regulator («Коэффициент для PID регулятора нагрева»)
|
|
Kd
|
1.400
|
Coefficient for the heating PID regulator («Коэффициент для PID регулятора нагрева»)
|
|
StbVoltage
|
100.00
|
Regulator voltage/power in temperature holding mode (V) («Напр./мощность регулятора в режиме поддержания темп. (V)»)
|
|
blynkauth
|
9u0Xz….7xHYp
|
Blynk token («Токен Blynk»)
|
|
videourl
|
|
Video camera URL («URL видеокамеры»)
|
|
TimeZone
|
3
|
Time zone («Часовой пояс»)
|
|
CheckPower
|
false
|
Use the regulator connection check («Использовать проверку подключения регулятора»)
|
|
HeaterR
|
35.000
|
Heating element resistance for power calculation («Сопротивление тэна для расчета мощности»)
|
|
SteamColor
|
#2c03fc
|
Steam sensor temperature color («Цвет температуры датчика пара»)
|
|
PipeColor
|
#f90126
|
Column section sensor temperature color («Цвет температуры датчика царги»)
|
|
WaterColor
|
#08c7f7
|
Water sensor temperature color («Цвет температуры датчика воды»)
|
|
TankColor
|
#338a05
|
Boiler sensor temperature color («Цвет температуры датчика куба»)
|
|
ACPColor
|
#000000
|
TCA sensor temperature color («Цвет температуры датчика ТСА»)
|
|
rele1
|
1
|
Relay 1 level («Уровень реле 1»)
|
|
rele2
|
0
|
Relay 2 level («Уровень реле 2»)
|
|
rele3
|
0
|
Relay 3 level («Уровень реле 3»)
|
|
rele4
|
0
|
Relay 4 level («Уровень реле 4»)
|
Note.
If there is no saved profile, Samovar creates the standard settings itself. The Samovar_default_settings.txt file from the tools folder of the firmware sources can be loaded as an ordinary settings file, but after the first flashing this is not required.
