        SAMOVAR
×
Menu

Other

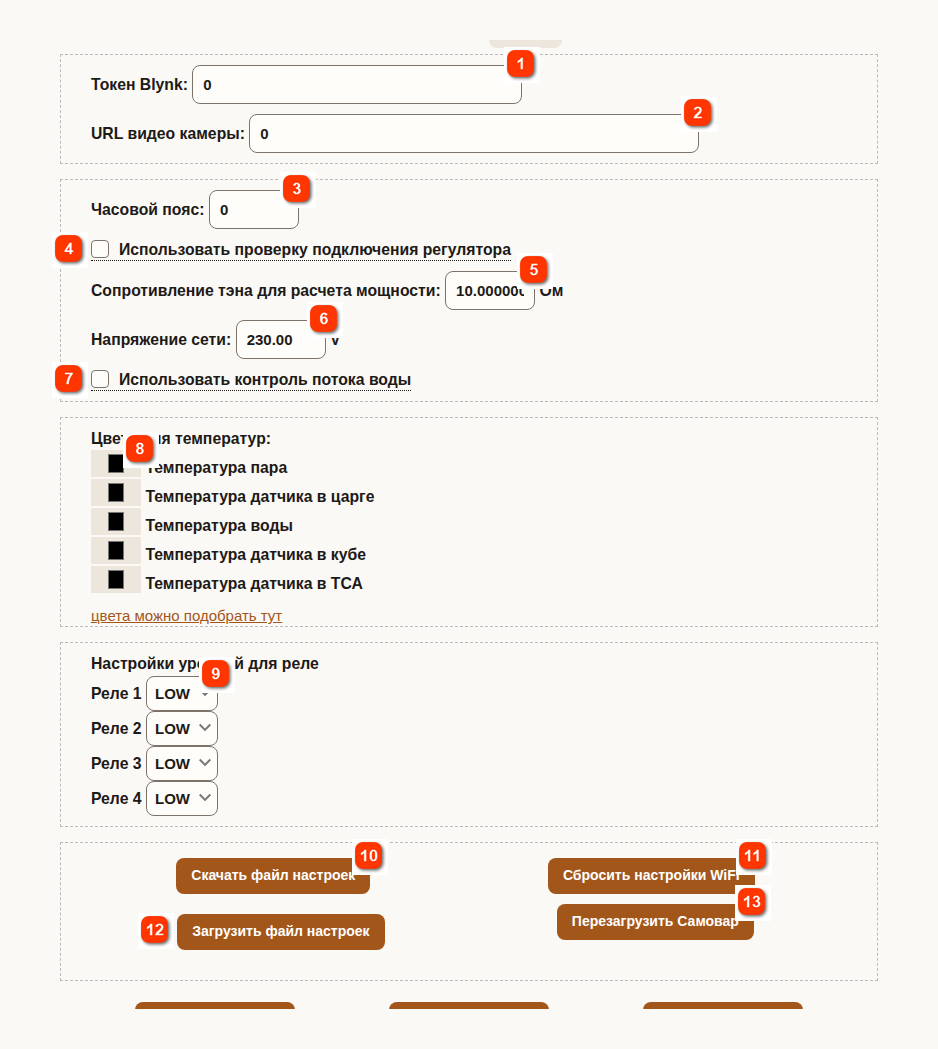

Settings («Настройки») → Other («Прочие»)
1

Blynk token («Токен Blynk»)

The device token on the samovar-tool.ru server (from the Samovar app or the "My devices" page on the website). The log and messages go to the cloud by the same token. Takes effect after a restart.

2

Camera video URL («URL видео камеры»)

The camera video stream address; it is sent to the Blynk server.

3

Time zone («Часовой пояс»)

The offset from Greenwich, a whole number of hours.

4

Use regulator connection check («Использовать проверку подключения регулятора»)

If the regulator does not answer requests, Samovar switches the heating off.

5

Heating element resistance for power calculation («Сопротивление тэна для расчета мощности»)

Ohms. Needed to calculate power when working with a feedback regulator.

6

Mains voltage («Напряжение сети»)

Volts. Together with the heating element resistance it sets the heater's maximum power (NBK mode).

7

Use water flow control («Использовать контроль потока воды»)

Take the coolant flow sensor readings into account.

8

Colors for temperatures («Цвета для температур»)

The color of each sensor on the main page, the "Temperature" («Температура») tab, the local chart, in the apps and on the website.

9

Relay level settings («Настройки уровней для реле»)

The active level for each of the four relays: LOW for Low Level Trigger modules, HIGH for High Level Trigger.

10

Download settings file («Скачать файл настроек»)

Save all settings to your computer in the file samovarbackup.txt.

11

Reset WiFi settings («Сбросить настройки WiFI»)

Forget the Wi-Fi network and reboot.

12

Upload settings file («Загрузить файл настроек»)

Put the settings from a previously saved file into the form. To apply them, press "Save" («Сохранить»).

13

Reboot Samovar («Перезагрузить Самовар»)

Reboot without turning the power off.


The log recording interval cannot be set: a log line is sent to the samovar-tool.ru server every 4 seconds and written to the local log file every 16 seconds. Samovar sends messages and the process log through the Blynk server to samovar-tool.ru, see Logs and charts in the cloud.

Blynk token («Токен Blynk»)

The device token for the samovar-tool.ru server. It is shown by the Samovar mobile app after registration or by the "My devices" page on the website (the "Show token" button), see Mobile apps and website. The token can also be entered in the Wi-Fi connection portal. The process log and messages reach the cloud by this same token. A new token takes effect after Samovar is restarted: the connection to the server is established at startup.

Camera video URL («URL видео камеры»)

If you have a camera that can serve a video stream over http or rtp stream, you can specify the camera access URL. Samovar sends this address to the Blynk server (the url property of pin V20). The video is not shown in the Samovar web interface, in the Samovar apps or on the website.

Time zone («Часовой пояс»)

Your time zone: the time offset from Greenwich, a whole number of hours from 0 to 23.

Use regulator connection check («Использовать проверку подключения регулятора»)

Used with feedback regulators. Samovar periodically sends a request to the regulator. If there is no answer to several requests, Samovar shows the message "No connection with the regulator!" («Нет связи с регулятором!») and then stops the process with the message "Emergency shutdown! No connection with the heating regulator." («Аварийное отключение! Нет связи с регулятором нагрева.»)

Heating element resistance for power calculation («Сопротивление тэна для расчета мощности»)

The resistance of the heating element. Used to calculate power when working with a feedback regulator. The current power value is shown on the main page.

Mains voltage («Напряжение сети»)

The supply mains voltage. Together with the heating element resistance it sets the heater's maximum power; used in NBK.

Use water flow control («Использовать контроль потока воды»)

Use of the coolant flow sensor. If the sensor is connected but the checkbox is cleared, its readings are not taken into account when monitoring the water supply.

Colors for temperatures («Цвета для температур»)

Setting the color for temperature sensors.
Setting the color for a particular sensor. The sensor readings will be shown in the selected color on:
the "Main" («Главная») tab, the "Temperature" («Температура») tab and the local charts. Samovar sends the colors to the server (pin V38), and the Samovar apps and the samovar-tool.ru website use them to color the temperature readings, the labels on the diagram and the chart lines. If a sensor color is left at the factory default, the theme color is used there.

Relay level settings («Настройки уровней для реле»)

Relay modules are mostly of the Low Level Trigger type (LLT; enabled by default). This means a logical "0" must be applied to the relay control input (IN1) to switch the relay on. When a logical "1" is applied to the input (IN1), the relay switches off.

Select the level at which a particular relay module switches on. For an ordinary Low Level Trigger module select LOW. After boot Samovar sets the opposite, off level; the selected active level is applied only when the command to switch the relay on is given.

Buttons («Кнопки»)

Download settings file («Скачать файл настроек»)
The settings are saved to your computer as the text file samovarbackup.txt. The file can be renamed (for example, to the name of the mode).

Reset WiFi settings («Сбросить настройки WiFI»)
Forget the Wi-Fi network Samovar is currently connected to. After confirmation Samovar reboots and raises an access point for Wi-Fi connection.

Upload settings file («Загрузить файл настроек»)
Restore settings from a previously saved file. The values are put into the fields of this page, after which the hint "Settings loaded into the form, press "Save" to apply." («Настройки загружены в форму, нажмите «Сохранить», чтобы применить.») appears. Fields with invalid values are listed in the error message.

Reboot Samovar («Перезагрузить Самовар»)
Rebooting Samovar without turning the power off.

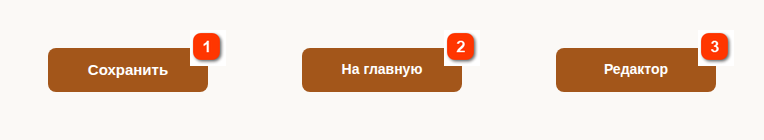

Buttons at the bottom of the settings page
1

Save («Сохранить»)

Save the settings of all tabs of the page.

2

To main page («На главную»)

Return to the main page.

3

Editor («Редактор»)

Open the Samovar file editor.


Save («Сохранить»)
Save the settings on this page. After saving, the main page opens. If a field value is outside the valid range, the message "Settings not saved. Check the fields: …" («Настройки не сохранены. Проверьте поля: …») appears. The mode cannot be changed while heating is on: Samovar refuses to save.

To main page («На главную»)
Return to the main page. If there are unsaved changes, Samovar asks for confirmation.

Editor («Редактор»)
Switch to the Samovar file editor (the /edit page). Here you can delete the old log data_old.csv or other files and view the contents of the file system.
