Logs and charts in the cloud


Viewing information in the cloud.

For Samovar to send the log to the cloud, get a device token and enter it in the "Blynk token" («Токен Blynk») field on the tab Settings → Other («Настройки → Прочие»). To view this log in your profile, add the device on the website www.samovar-tool.ru in the menu "User → Devices".
While the token is set and there is a connection to the server, when writing the local log Samovar sends data and messages to the cloud, where they can be viewed on the website www.samovar-tool.ru on the "Logs" page (samovar-tool.ru/logi/).
One website user can have several Samovars if the website administrator has raised the device limit (one by default, see Mobile apps and website). The "Logs" page shows the processes of the device selected in the menu "User → Devices". To open the archive of another Samovar, select it there first.
While the token is set and there is an internet connection, log lines are sent automatically once every 4 seconds during a process. If Samovar rebooted during a process and heating is switched on again within 30 minutes, recording continues in the same session.
On the chart, new pauses are shown as an interval with the reason, result and duration. If part of the data was not received or the device time was changed, a single mark may remain instead of an interval.

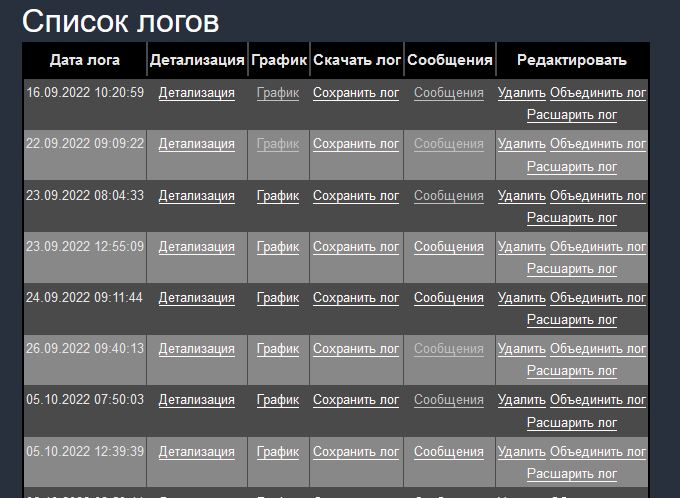

The list of logs in the cloud ("Log list") looks as follows:


Details - the take-off program and additional information ("process memo")
Chart - a chart of the process will be built.

Messages - all messages that appeared during this process.

CSV - the log file will be downloaded to your computer. The file name is data.csv

The "Access" column shows whether the log is shared or private. In the "Actions" column:
Share - allow everyone who has the link to this log to view it. Can be undone.

Merge with previous - merge the log with the previous one. Cannot be undone.

Delete - delete this log. Cannot be undone.

Logs and charts are available only to you, but you can share them with other participants.

To share a log:
Press "Share". Answer yes to the question "Make the log available to everyone?".
The "Share" label will change to "Make private", and "Shared" will appear in the "Access" column.
Open the log, for example on "Details", copy the link from the browser address bar and send it in any way to the person you want to share with.
Everyone who has the link will be able to view the chart and download the log file - data.csv

To forbid viewing: press "Make private" and answer yes to the question "Make the log private?"; the label will change to "Share". The log will no longer be available to others.

Details

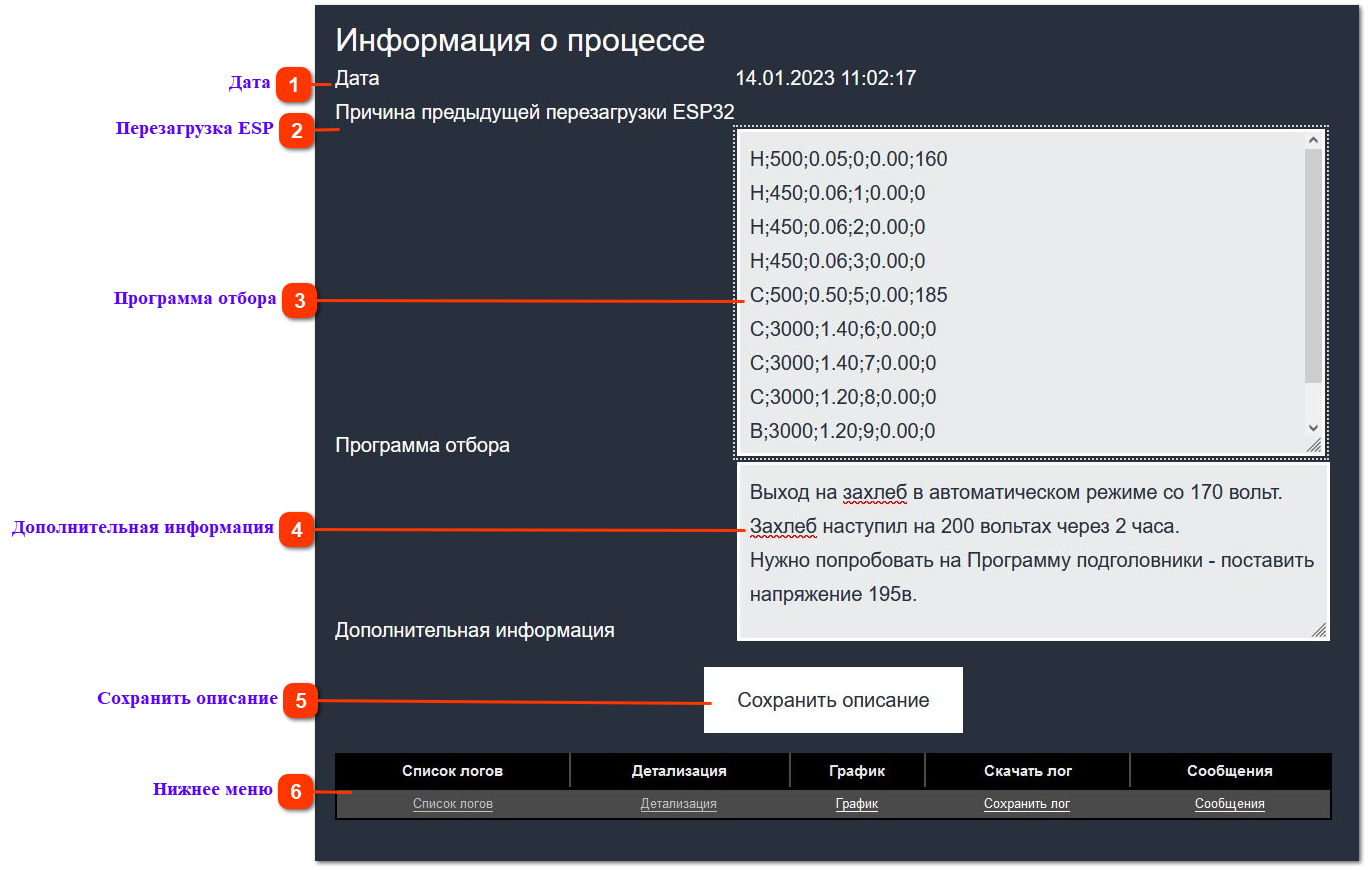

Clicking "Details" opens the "Process information" card.

Logs and charts in the cloud

1. Date
The date and time the process started. The start time is recorded by the condition for starting the local log recording. The operating mode is shown below.

2. Reason for the previous ESP32 reboot
The reason Samovar stopped working may be shown.

3. Take-off program
The take-off program in text format. It can be copied and used in another process by pasting it into the text field on the "Program" («Программа») tab. Not editable.

4. Additional information
A description of the take-off program in text format. Free text. Can be edited.

5. Save description
Press after editing the take-off program description and confirm the question "Save description?" to save the changes.

6. Log menu
← Log list - return to the previous window with the list of all logs
Details - this very window
Chart - view the chart for this particular process

Messages - all messages that appeared during this process.
Download CSV - download the data.csv log file.

Chart

In addition to the local one, the following data are added to the chart in the cloud (some series are hidden; turn them on by clicking the legend):
- Take-off rate
- Water flow
- Voltage/Power.

- ABV in the boiler
- ABV in the take-off (the data are relevant only for "Distillation" («Дистилляция») mode)
- TCA temperature, atmospheric pressure.
The chart marks program line changes, pauses (reason, outcome, duration) and, in Cheesemaking mode, the floc point.

The conditions for starting recording are the same as for the local log. Temperatures are shown on the left scale, percentages on the right one. Zoom with the mouse wheel or by selecting an area with the mouse. The data are stored in the cloud, and the chart image is built by the browser on your computer.
The less data, the faster your internet connection and the more powerful your computer, the faster the chart is built.

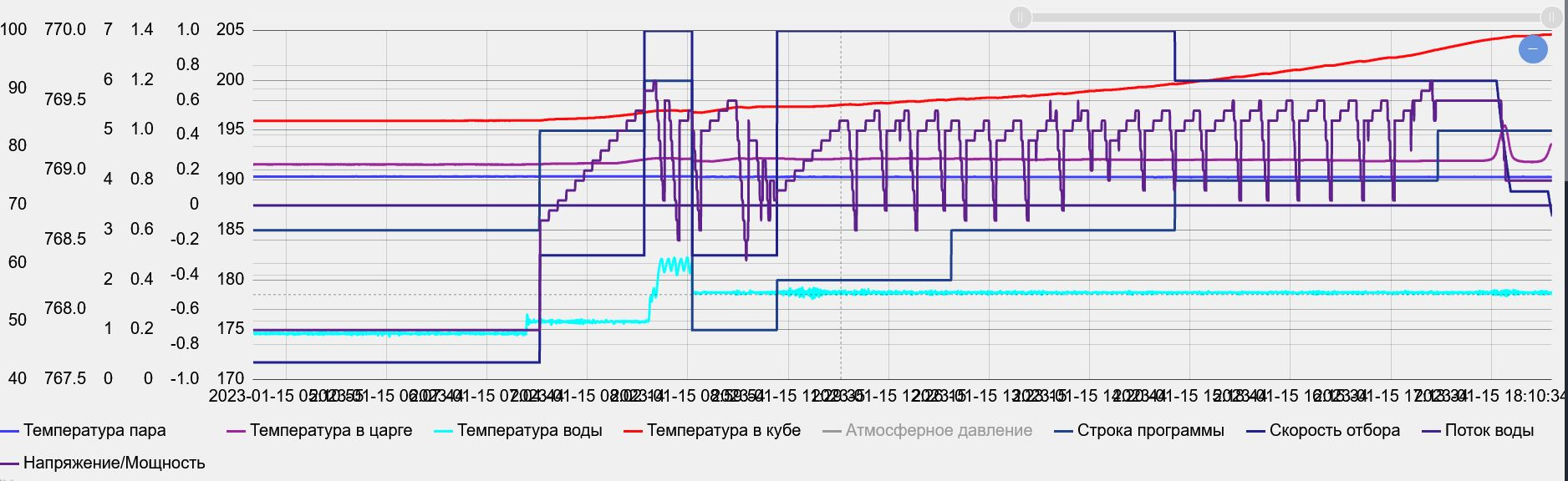

Example chart:


The example shows program line changes (vertical lines), the drop of alcohol content in the boiler during collection, and a pause around 14:30 during which the steam and water temperatures fell.

Messages

If you missed a message, you can see the history here. For example: why the heating "suddenly" switched off.

Example:

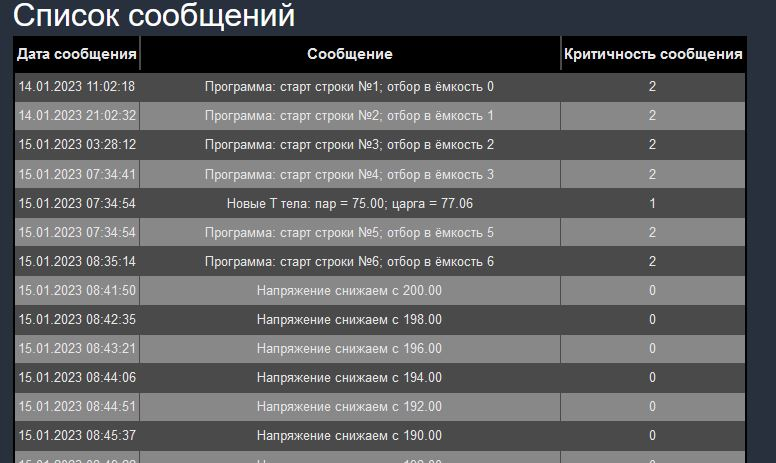

Fragment of the messages window: program lines starting, a pause and the end of heat-up.


Questions and answers. FAQ

How long are logs kept in the cloud?
Logs shorter than 21 minutes are deleted 3 days after they end. The rest are kept indefinitely.

Does a brew in "Beer" («Пиво») mode appear in the website cabinet journal by itself?
Yes. A session started in "Beer" mode creates an entry in the journal of the "Brewer's cabinet" on the website automatically, from the same data that reach this page (mashing steps, boiling with the "Add the hops!" («Засыпьте хмель!») messages, cooling); the device sends nothing additional. More details are on the page Beer brewing journal on the website and in the apps.
