You can change the voltage supplied to the regulator at any moment while the take-off program is running and the heating is on. Do it on the "Main" («Главная») tab, in the "Regulator" («Регулятор») card

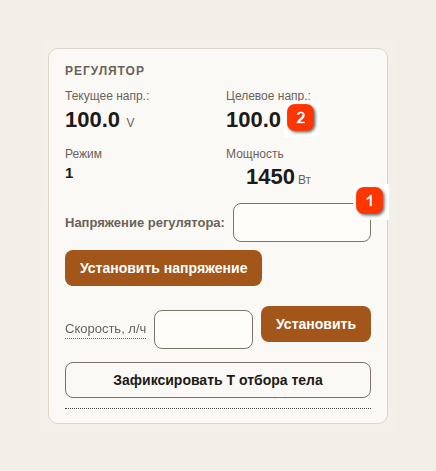

The "Regulator" («Регулятор») card on the "Rectification" («Ректификация») tab
Manual input
Enter a value in volts (in watts for the Stab-avr regulator) and press "Set voltage" («Установить напряжение»).
Target V («Целевое напр.»)
The voltage (power) currently set on the regulator: from the program line or entered manually.
Enter a value in volts (for example: 150 or 171) and press "Set voltage" («Установить напряжение»). For the Stab-avr regulator the field is called "Regulator power" («Мощность регулятора»), the value is entered in watts, and the button is "Set power" («Установить мощность»). The manual voltage setting takes priority over the program one and stays in effect until Samovar moves on to the next line of the take-off program
Note: if you want the manually set voltage to apply to the next line of the take-off program as well, put 0 (zero) in the "Voltage" («Напряжение») field of that line
Note: when the next line of the take-off program starts, the regulator is set to the voltage specified in that program line, but the value entered by the operator manually is still shown in the input field. To find out which setting the regulator is following, compare two values: the input field and "Target V" («Целевое напр.») in the "Regulator" card.
Attention: in the "Pre-flooding" («Предзахлеб») mode the manual voltage change is applied, but Samovar keeps running the operating algorithm of the column in the pre-flooding mode.
Attention: in NBK mode, at the "Optimization" («Оптимизация») and "Work" («Работа») stages, the manual voltage change is not performed — Samovar shows the message "Manual control is not available during NBK Optimization and Work" («Ручное управление недоступно на Оптимизации и в Работе НБК»).
